Advanced PE Film Washing Line.
Built for Excellence.
Industrial-grade recycling technology that transforms contaminated plastic film into premium-quality pellets. Engineered for efficiency, designed for reliability.
Get Solution & QuoteUnparalleled Performance.
We focus on every detail, from robust materials to intelligent operating systems, to deliver an unmatched recycling experience.
High-Efficiency Automation
A fully automated line design significantly reduces labor costs and enhances production efficiency, from material input to final output.
Robust and Durable
Built with high-quality, wear-resistant steel and parts from renowned brands to ensure stable, year-after-year operation.
Eco-Friendly & Energy-Saving
Equipped with an advanced water recycling filtration system to maximize water reuse and reduce operational costs.
Superior Output Quality
Unique washing and drying technologies ensure the final product has a moisture content under 3%, fetching a higher market price.
The Alchemy of Recycling.
See how waste film is transformed, step-by-step, into clean, usable raw material through our streamlined production line.
Feeding & Granulating
Baled film enters the wet granulator, where it is cut into small flakes for easy washing.
High-Friction Washing
Intense friction from high-speed paddles scrubs off dirt, debris, and paper labels.
Floating & Separation
In the float-sink tank, heavy contaminants like sand and rocks are separated by density.
Dewatering & Drying
Moisture is removed via centrifugal and thermal systems, preparing the flakes for pelletizing.
Pure Final Product
Outputs clean, dry film flakes, ready for the next stage of high-quality pellet production.
Core Technologies That Drive Change.
Every component is engineered for the most efficient and reliable recycling performance.

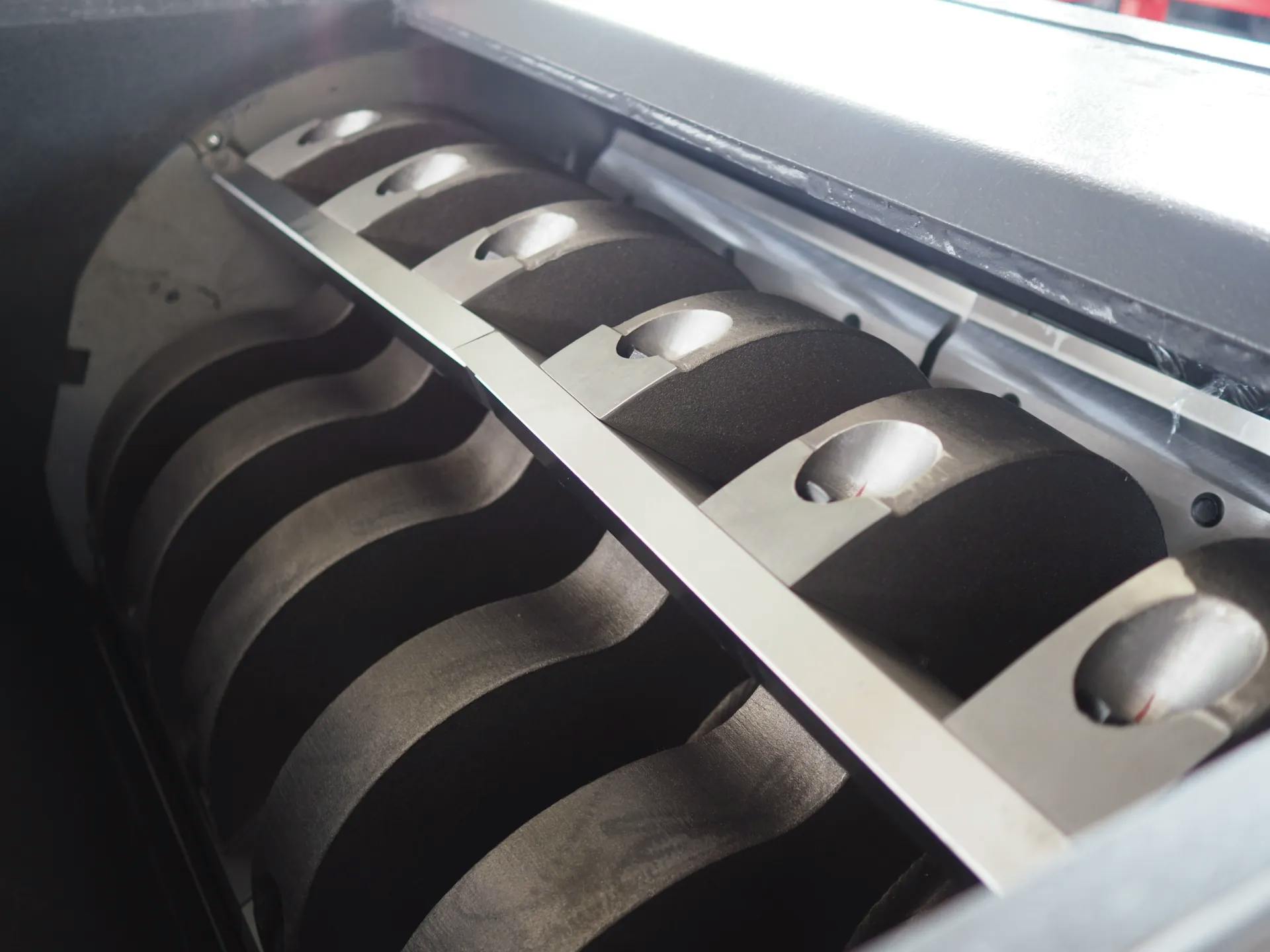

High-Efficiency Wet Granulator
Simultaneously granulates and pre-washes material. Water injection removes contaminants and lubricates the blades, extending their operational life up to three times longer than dry granulation.

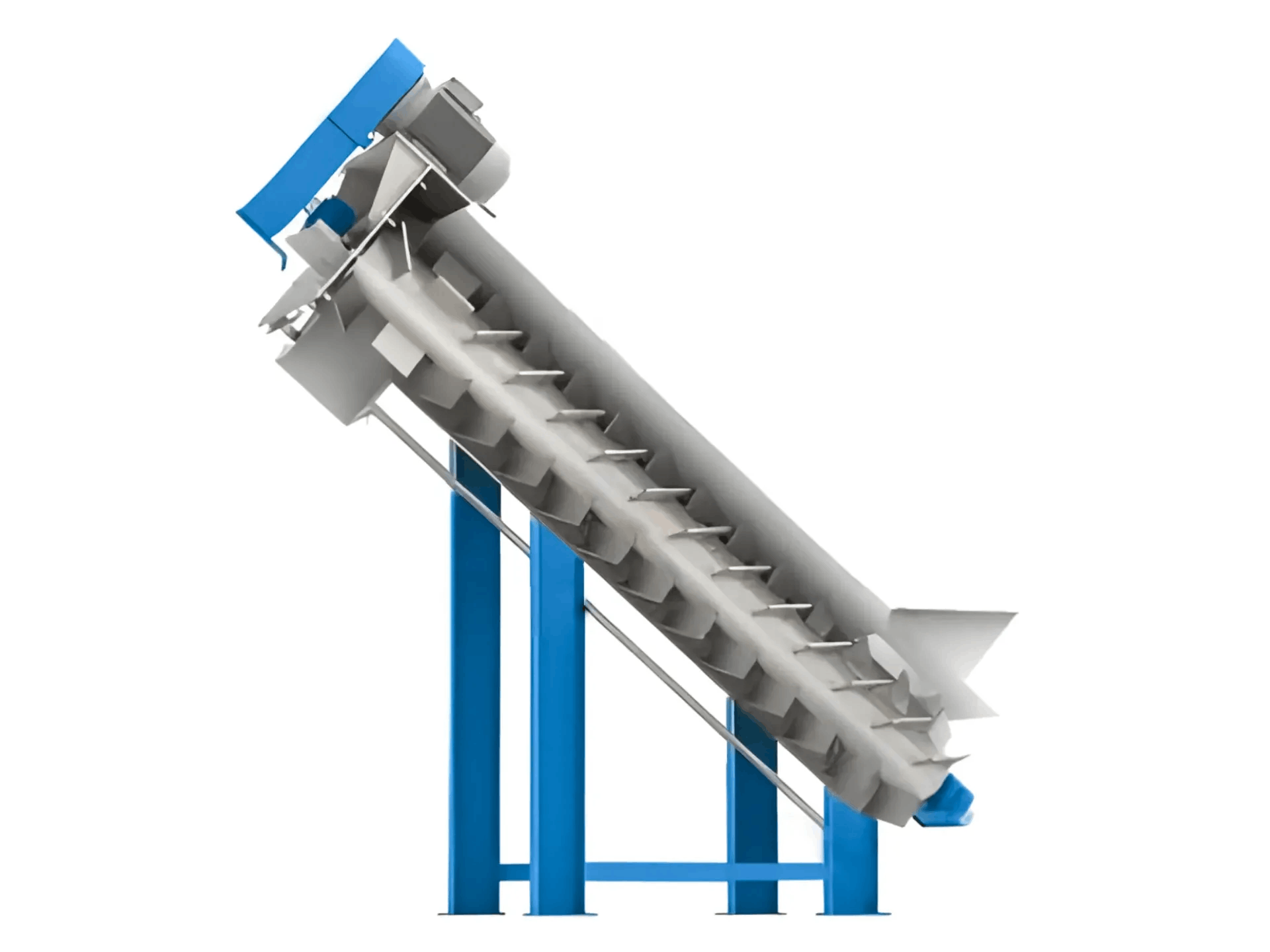

High-Speed Friction Washer
A rotor spinning at over 1,000 RPM generates powerful centrifugal force, scrubbing material clean of stubborn contaminants like paper pulp and dirt.

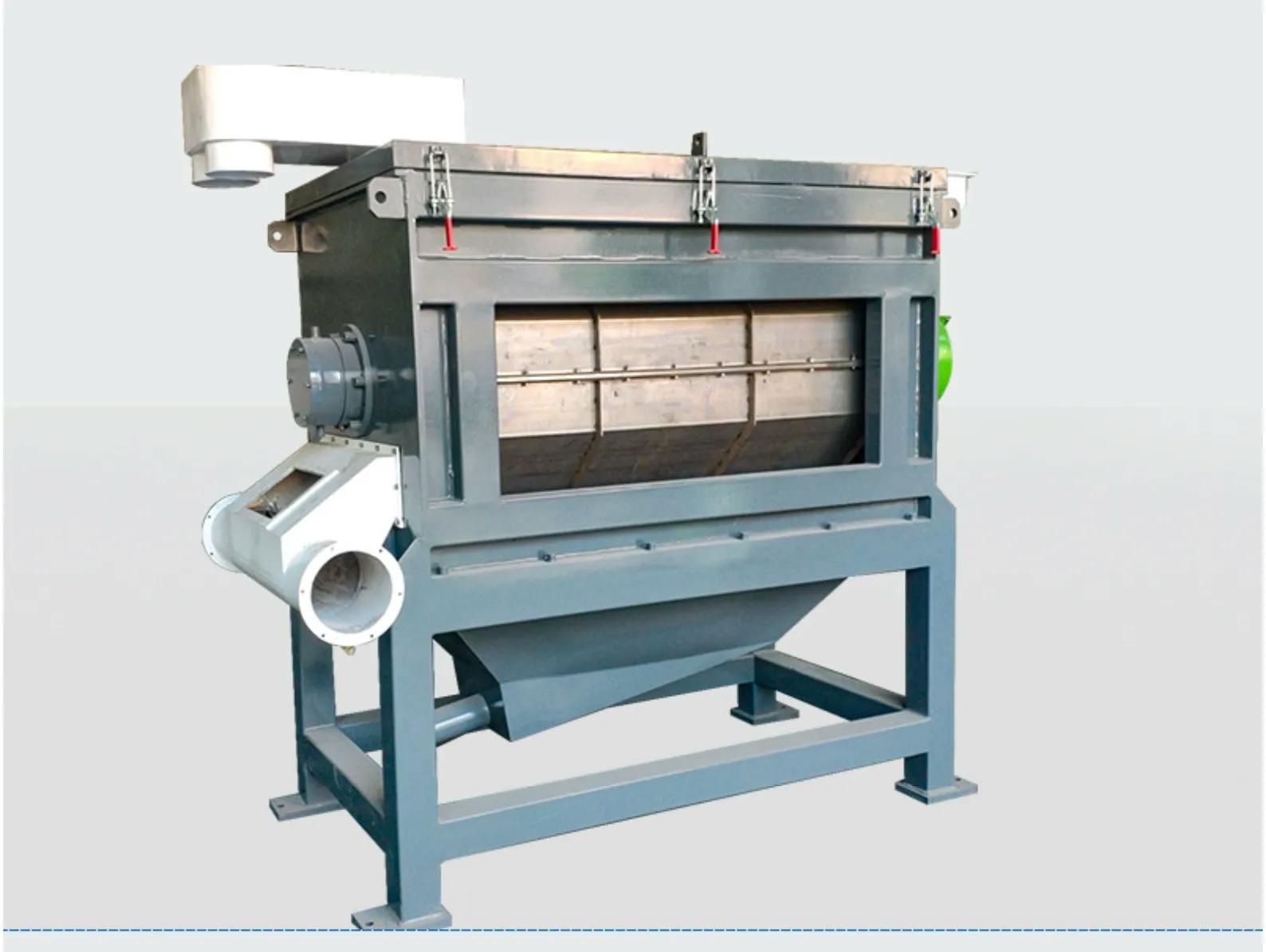

Dewatering Screw Press
An energy-efficient alternative to thermal drying. It uses immense mechanical pressure to squeeze water from the film, reducing moisture content to below 15% without the high electricity costs of heaters.
Technical Specifications
We offer various configurations to meet your capacity requirements. Below are our standard models.
| Parameter | 500 kg/h Standard Model | 1000 kg/h Enhanced Model |
|---|---|---|
| Input Capacity | 400 – 500 kg/h | 800 – 1,000 kg/h |
| Installed Power | ~250 KW | ~350 KW |
| Footprint (L×W×H) | ~40m × 15m × 6m | ~50m × 15m × 6m |
| Operators Required | 2-3 Persons | 3-5 Persons |
| Water Circulation | ~2 T/h | ~3 T/h |
Seeing is Believing.
From equipment details to the seamless production process, see our engineering excellence in action.
Get a Custom Solution & Quote
Tell us your requirements, and our engineering experts will provide a tailored solution and a detailed quotation within 24 hours.
Frequently Asked Questions
Your common questions about our equipment, materials, and processes, answered.
What types of plastic can this line process?
Our washing line is designed for a wide variety of Polyethylene (PE) and Polypropylene (PP) films, including LLDPE/LDPE film, plastic supermarket bags, and packaging film.
What is the difference between a granulator and a shredder?
A granulator operates at high speeds for smaller, uniform outputs and is best for cleaner materials. A shredder is a low-speed, high-torque machine that powerfully tears down large, compacted, or contaminated bales, often used as a pre-shredding step.
How many operators are required for the full line?
Our standard automated lines typically require 2-5 operators for feeding and supervision. We can also engineer a 100% hands-free system for countries where labor costs are a primary concern.
What is the delivery time?
The lead time for single pieces of equipment is approximately 30 days. For complete custom washing lines, the lead time is between 60 to 90 working days, depending on the project's complexity and our factory's production schedule.
